Commit Stage

Purpose​

The Commit Stage is the foundation of our Continuous Integration (CI) pipeline, serving as the first automated quality gate for all code changes. It ensures that:

  • Code compiles successfully across all components
  • All tests pass at various levels
  • Code meets quality and security standards
  • Deployable artifacts are produced consistently

As highlighted in modern engineering practices, having an automated Commit Stage is crucial for effective Test-Driven Development (TDD) and prevents the "it works on my machine" syndrome.

Architecture Overview​

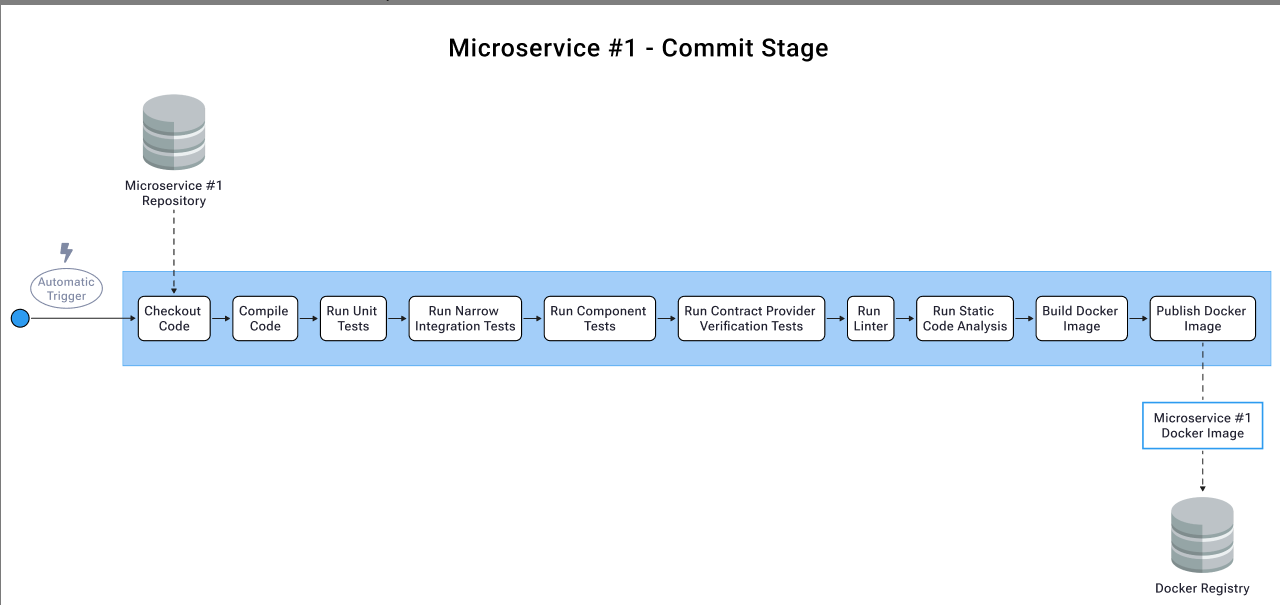

Commit Stage Overview

Our system consists of multiple components, each with its own Commit Stage pipeline:

Component Commit Stage

Stage Components​

1. Code Checkout​

  • Automated checkout from Git repository
  • Triggered on:
    • Push to main branch
    • Pull request creation/update
    • Manual workflow dispatch (for contract testing)

2. Environment Setup​

  • Node.js 18 environment configuration
  • Dependency installation using npm ci for reproducible builds
  • Cache configuration for improved performance

3. Compilation​

  • TypeScript compilation for both frontend and backend
  • Build verification
  • Type checking

4. Testing Layers​

Unit Tests​

  • Jest-based unit testing
  • Code coverage reporting
  • Focused on business logic and component behavior

Narrow Integration Tests (Backend)​

  • Database integration testing
  • External service integration verification
  • Uses isolated test database

Component Tests​

  • Testing components in isolation
  • Verifying component behavior and integration
  • Frontend and backend specific test suites

Contract Tests​

  • Consumer-driven contract testing using Pact
  • Contract publication to Pact Broker
  • Provider contract verification
  • Ensures API compatibility between services

5. Static Analysis​

  • ESLint for code quality checks
  • TypeScript type checking
  • Style consistency verification
  • Security vulnerability scanning
  • Dependency analysis

6. Docker Build​

  • Multi-stage Docker builds for optimized images
  • Image tagging with commit SHA and latest
  • Security scanning of container images

7. Artifact Publishing​

  • Docker image publication to GitHub Container Registry
  • Versioned artifacts for traceability
  • Automated publishing on main branch commits

Quality Gates​

The Commit Stage enforces several quality gates:

  1. Build Success

    • Clean compilation
    • No TypeScript errors

  2. Test Coverage

    • All test suites must pass
    • Coverage thresholds met

  3. Code Quality

    • No linting errors
    • Passing static analysis

  4. Contract Verification

    • Valid consumer contracts
    • Provider verification success

Implementation​

Our Commit Stage is implemented using GitHub Actions workflows:

  • Frontend: digital-kudos-wall-frontend/.github/workflows/commit-stage.yml
  • Backend: digital-kudos-wall-backend/.github/workflows/commit-stage.yml

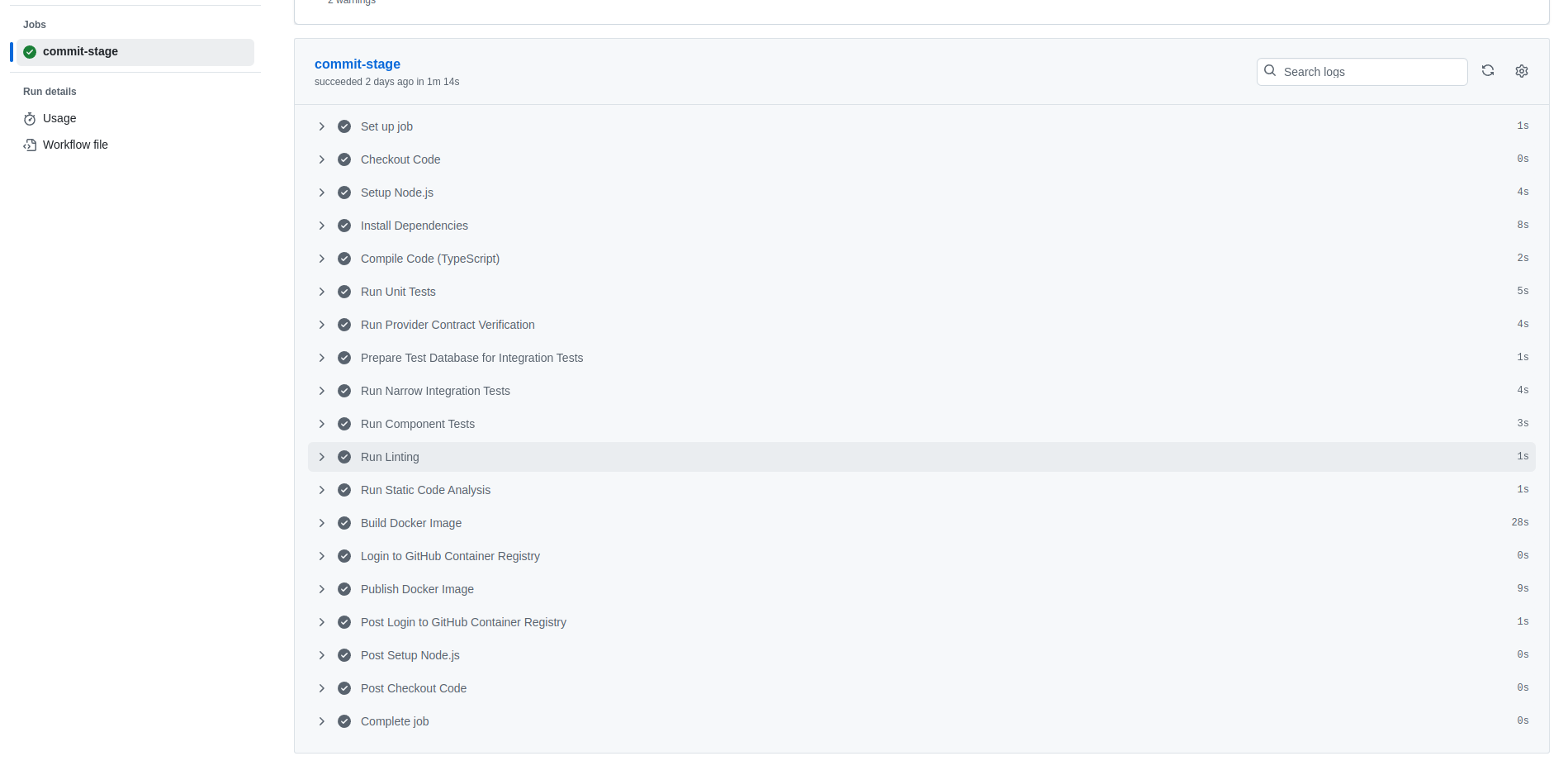

Example Successful Run​

Successful Commit Stage Run

A successful commit stage run executes all steps in sequence:

  1. Setup (1s): Initial job setup
  2. Code Checkout (8s): Fetching code from repository
  3. Node.js Setup (4s): Configuring Node.js environment
  4. Dependencies (8s): Installing npm packages
  5. TypeScript Compilation (2s): Building the code
  6. Unit Tests (5s): Running unit test suite
  7. Contract Tests (4s): Verifying API contracts
  8. Database Preparation (1s): Setting up test database
  9. Integration Tests (4s): Running integration tests
  10. Component Tests (3s): Executing component tests
  11. Linting (1s): Code style verification
  12. Static Analysis (1s): Code quality checks
  13. Docker Build (28s): Building container image
  14. Registry Login (8s): Authenticating with container registry
  15. Image Publishing (8s): Publishing Docker images
  16. Post-steps (1-8s): Cleanup and finalization

Total pipeline execution time: ~1m 14s

This efficient execution time is achieved through:

  • Optimized dependency caching
  • Parallel test execution where possible
  • Efficient Docker layer caching
  • Minimal test database setup

Common Issues and Solutions​

  1. Flaky Tests

    • Implement retry mechanisms
    • Isolate test environments
    • Use deterministic test data

  2. Build Performance

    • Optimize dependency caching
    • Parallel test execution
    • Efficient Docker layer caching

  3. Contract Testing

    • Ensure Pact Broker availability
    • Maintain contract versioning
    • Handle provider state setup

Next Steps​

  1. Acceptance Stage
  2. Advanced Topics
